Plate/ Structure
Shot Blasting Machine

A plate/structure shot blasting machine prepares metal surfaces by removing rust, scale, and contaminants using high-speed abrasive particles. It is an essential investment for metalworking operations.

Plate/ Structure
Shot Blasting Machine/ Structure

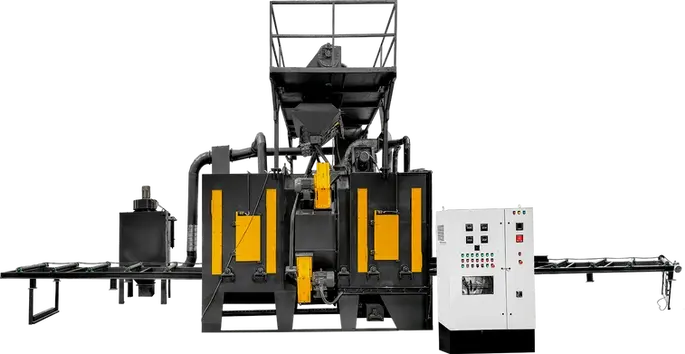

The Plate/Structure Shot Blasting Machine is engineered to clean and prepare large plates and structural components for surface treatments such as painting, coating, or welding. Using shot blasting technology, it efficiently removes rust, scale, and surface contaminants from these sizable workpieces.



The machine's design is optimized to handle the dimensions and weight of plates and structural elements, ensuring thorough blasting coverage. Safety features such as interlocks and protective barriers are incorporated to prevent accidents during operation.



Equipped with a dust collection system, it effectively captures abrasive dust and debris, maintaining a clean working environment and minimizing air pollution. Variable speed control allows for adjustment of blasting intensity and surface finish quality.



Automation compatibility facilitates seamless integration with loading/ unloading systems and process monitoring for enhanced productivity and efficiency. Compliance with relevant safety and quality standards is ensured, with regular maintenance required to uphold optimal performance and longevity of machine components.


Technology:

Application:

Standard/
Customization

Delivery:

Roller Conveyor

The Plate/Structure Shot Blasting Machine is used for cleaning and preparing large steel plates and structural components in industries like steel fabrication, shipbuilding, automotive, aerospace, construction, and more, ensuring enhanced surface adhesion and prolonging the lifespan of structures and equipment.

Customised option is available as per requirement

4 to 6 weeks

Features:

The Plate/Structure Shot Blasting Machine is designed to efficiently clean and prepare large plates, structural components, and assemblies for various applications. Here are its key features:

​

  • Large Capacity: Capable of handling large plates and structural components, including beams, columns, and welded assemblies.

​

  • Abrasive Blasting: Utilizes abrasive blasting technology to remove rust, scale, and surface contaminants from the workpieces.

​

  • Customized Design: Tailored design to accommodate the size and shape of plates and structural components, ensuring uniform blasting coverage.

​

  • Multiple Blast Wheels: Equipped with multiple blast wheels strategically positioned to cover the entire surface area of the workpieces, ensuring thorough cleaning.

​

  • Variable Speed Control: Allows for adjustment of conveyor speed to optimize blasting efficiency and surface finish quality.

​

  • Dust Collection System: Integrated dust collection system captures abrasive dust and debris, maintaining a clean working environment and preventing air pollution.

​

  • Safety Features: Incorporates safety measures such as interlocks and protective barriers to prevent accidents during operation.

​

  • Automation Compatibility: Compatible with automation systems for loading and unloading of workpieces, as well as process monitoring and control, enhancing productivity and efficiency.

​

  • Versatility: Suitable for various materials, including steel, aluminum, and composite structures.

​

  • Compliance: Meets relevant safety and quality standards for equipment operation and environmental protection, ensuring safe and reliable operation.

​

These features make the Plate/Structure Shot Blasting Machine an essential tool for industries requiring efficient and high-quality surface preparation of large plates and structural components.

Material Compatibility:

  • Steel: Various grades of carbon steel, stainless steel, and alloy steel commonly used in construction, manufacturing, and infrastructure projects.

​

  • Aluminum: Aluminum plates and structures used in aerospace, automotive, marine, and construction industries.

​

  • Cast Iron: Cast iron plates and structures found in machinery, equipment, and infrastructure applications.

​

  • Composite Materials: Fiberglass-reinforced plastic (FRP) plates and structures used in marine, automotive, and construction industries.

​

  • Concrete: Concrete structures and precast concrete elements used in building construction, bridges, and infrastructure projects.

​

  • Stone: Natural stone slabs and structures used in architectural and landscaping applications.

​

  • Plastics: Plastic plates and structures used in various industries such as automotive, electronics, and consumer goods.

​

  • Wood: Wooden plates and structures used in construction, furniture manufacturing, and carpentry.

Compliance &
Standards:

  • ​OSHA Regulations: Ensuring worker safety during operation.

  • Environmental Protection: Minimizing environmental impact.

  • ISO Standards: Compliance with equipment design and safety protocols.

  • CE Marking: Conforming to EU Machinery Directive requirements.

  • Quality Control Measures: Consistency in shot blasting process.

  • Material Safety Data Sheets (MSDS): Safe handling of abrasive materials.

  • Equipment Safety Standards: Meeting safety requirements for operation.

  • Workplace Safety Regulations: Compliance with local safety regulations.

  • Noise Regulations: Minimizing noise impact on workers and surroundings.

  • Manufacturer's Guidelines: Following guidelines for installation and maintenance.
